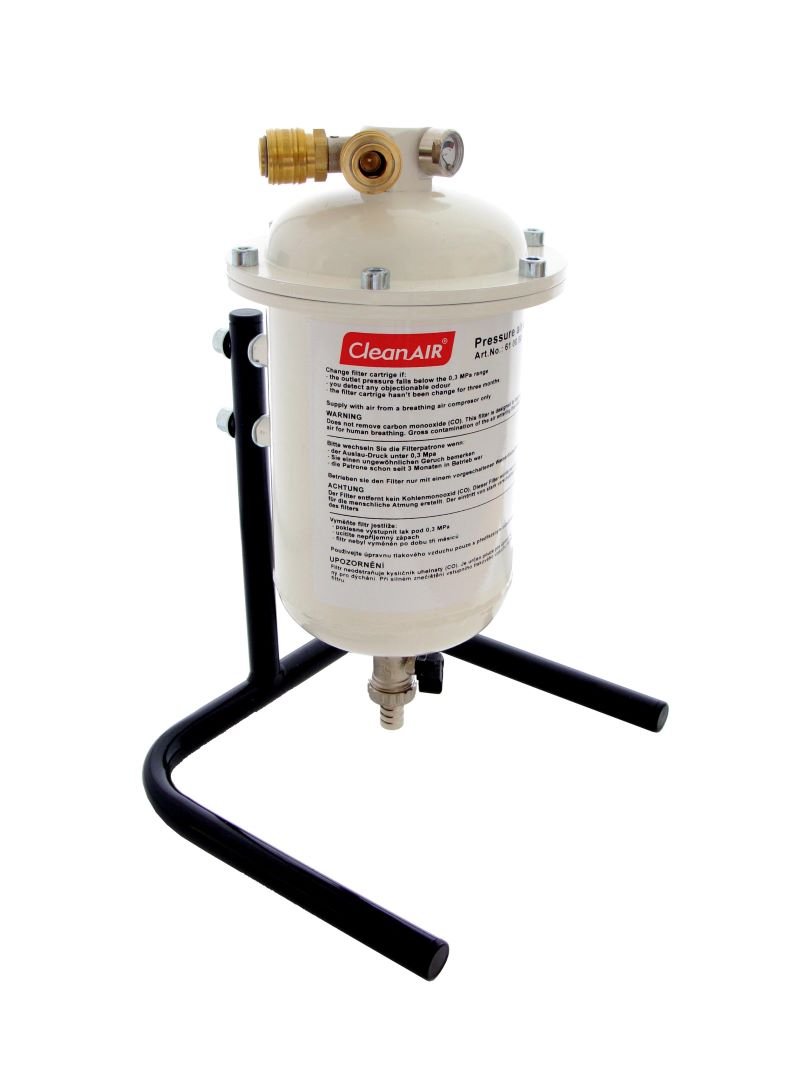

CleanAIR Pressure Flow Master with stand and filter

CleanAIR Pressure Conditioner contains the high capacity combined filter that removes solid particles, oil mist and unpleasant odours out of the air line system.


Areas of application
Can be used in combination with CleanAIR Pressure (Flow Master) and improve the quality of the air flowing into the headtop

  • Automotive industry
  • Welding
  • Grinding
  • Surface finishing operations
  • Heavy industrial environments
  • Chemical industry
  • Laboratories

Product Features

  • Low weight
  • Economical operation
  • High levels of airflow
  • Warning low pressure system
  • Option of filtration of supplied air with CleanAIR Conditioner
  • Compatible with a wide range of CleanAIR headtops

Includes

  • Filter
  • Pressure Conditioner
  • Stand
  • Optional wall mount

Specifications

Dimensions:

240 mm / 380 mm / 220 mm

Inlet connection:

RECTUS 25, 26 and CEJN 320

Outlet connection:

RECTUS 25, 26 and CEJN 320

Inlet pressure:

300 - 1 000 kPa

Materials:

Steel - powder-coated finish

Recommended inlet hose:

R610030 - Pressure hose standard (length: 10 m)

Recommended outlet hose: R610046 - Pressure hose spiral (length: 10 m)
Storage conditions: -10oC to + 55oC, humidity 20 - 95 % Rh
Operating conditions: 0oC to + 60oC, humidity 20 - 95 % Rh
Weight: 6800 grams
